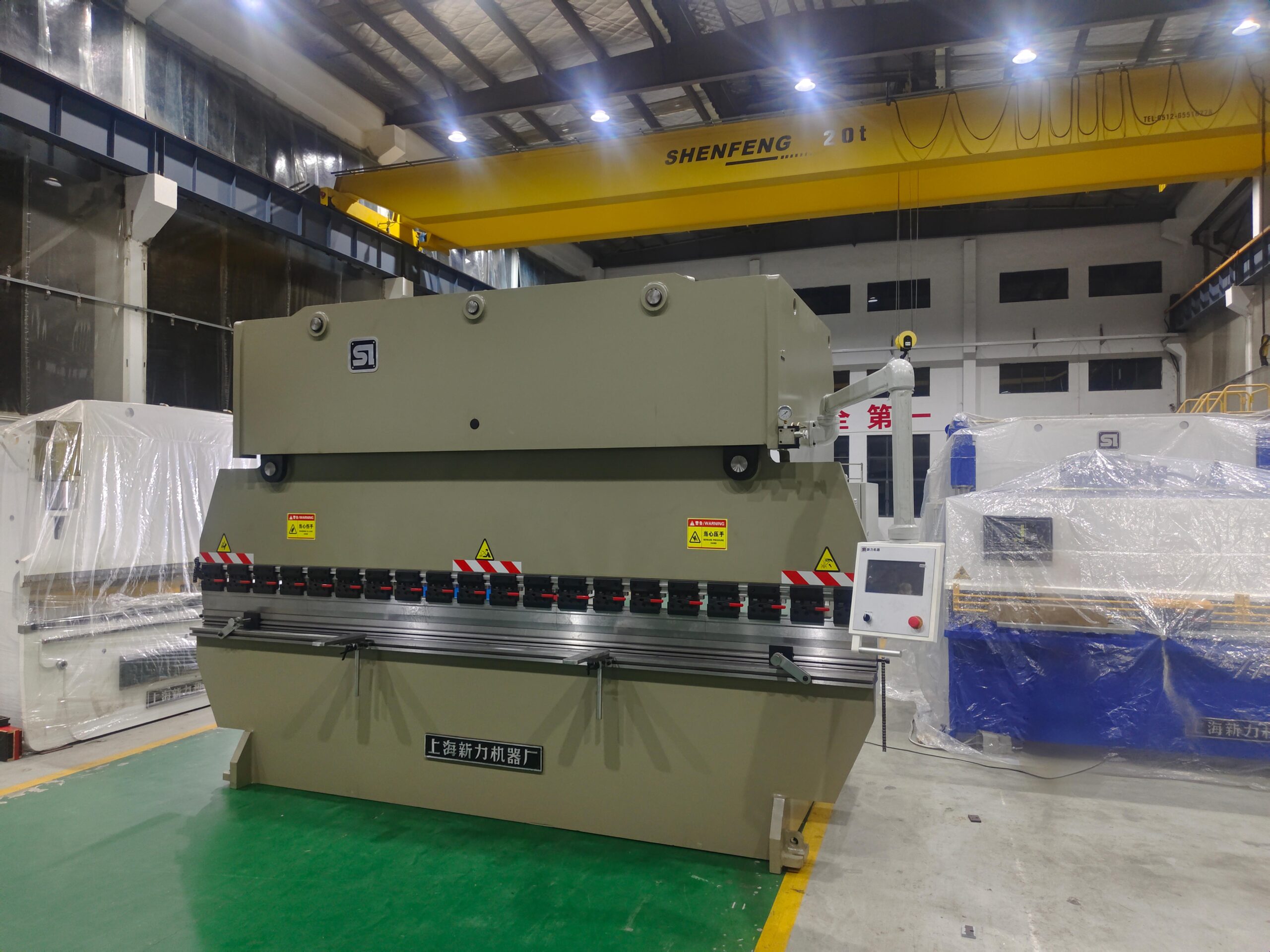

Three cylinder CNC Bending Machine

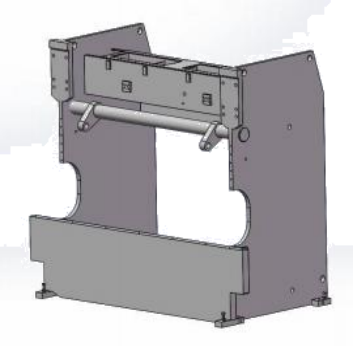

Frame

The machine adopts an integrated high-quality steel plate welded structure,
featuring a heavy-duty frame with excellent rigidity and stability.
The machine surface is coated with imported anti-rust primer and finish paint
to ensure long-lasting durability and appearance.

The frame and upper working slider are processed using imported German
large-scale CNC floor boring and milling machines, ensuring precise
positioning accuracy for all installation surfaces.

CNC System

• 10-inch high-definition true color touchscreen
• Menu-style programming interface
• Standard Y, X, and R axis servo motors
• CANopen bus control method effectively eliminates interference-related positioning errors
• Supports angle programming with automatic calculation of sheet bending depth

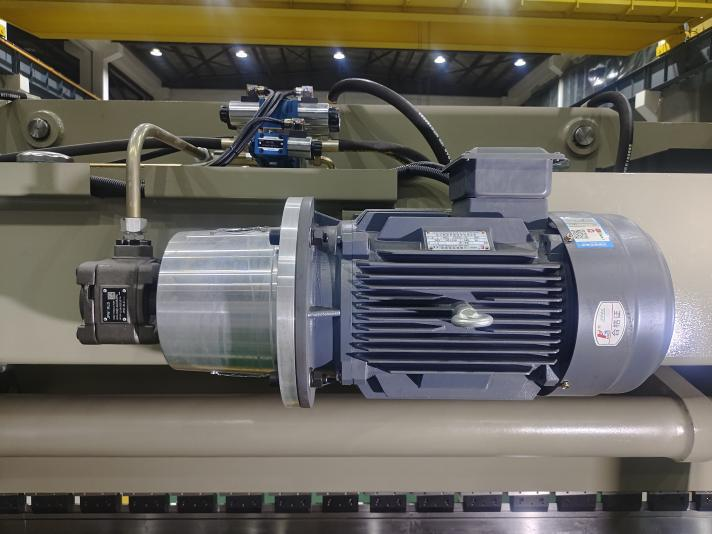

Main Motor

• Low-noise and energy-saving motor with efficient power output
• Precision valve control for more accurate synchronized operation
• Durable core power component designed for heavy-duty use

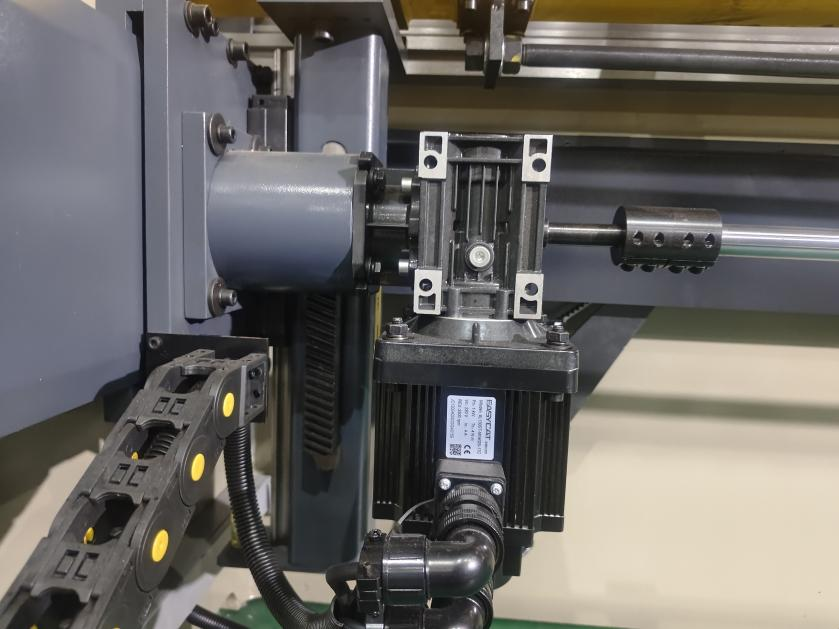

Servo Motor

• High-precision servo drive with accurate positioning and fast response
• Sensitive and stable back gauge stroke adjustment
• Powerful output with smooth and low-noise operation
• Strong anti-interference capability to ensure consistent bending dimensions

Tooling & Clamping Device

• The tooling consists of upper and lower dies with excellent quality and long service life
• The upper die is mounted on the slider and secured with a high-precision quick clamping device
• The lower die adopts a multi-V die design for convenient operation
• Reduces labor intensity and improves production efficiency

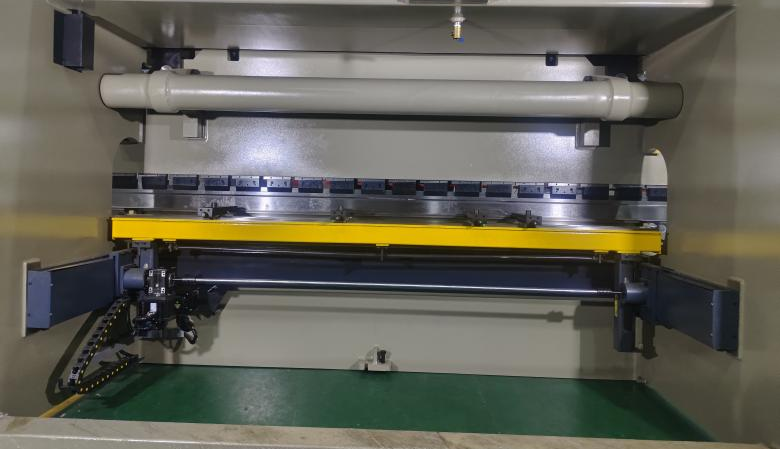

Back Gauge

• Controlled by servo motors with high-precision large-lead ball screws
• High speed and accurate positioning
• Multi-stage positioning design for extended positioning range
• Stress-relieved steel beam structure for enhanced toughness and impact resistance
