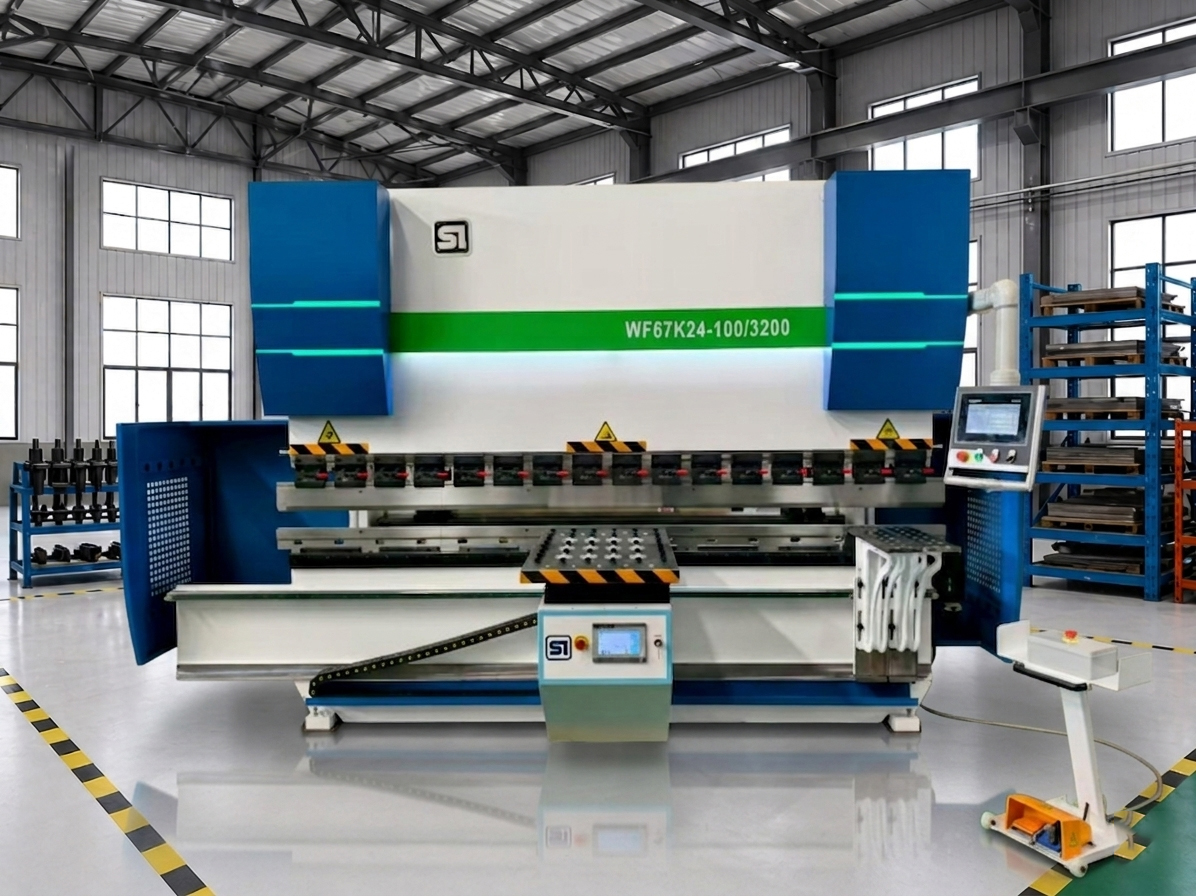

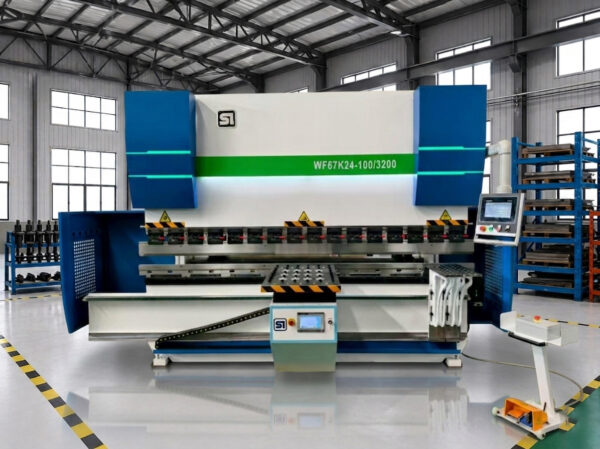

The WF67K series electro-hydraulic CNC bending machine, equipped with an intelligent follow-up material support device, ensures high precision and deformation-free bending of long plates.
The machine adopts an integrated welded steel plate structure with excellent rigidity,
high strength, and strong resistance to torsional deformation.
Surface shot blasting and stress-relief treatments eliminate internal stress,
ensuring long-term precision and stability of the machine.
During bending operations, deformation of the slider and worktable is minimal,
ensuring excellent straightness and angle consistency of the workpiece.
Equipped with the Dutch DELEM DA53TX CNC system featuring graphical programming
and dual-machine synchronized closed-loop control.
Provides more precise, efficient, and user-friendly operation for large-tonnage bending applications.
Uses the German BOSCH & REXROTH fully closed-loop electro-hydraulic servo synchronization system.
Ensures high stability and high precision during high-speed machine operation.
Continuously controls hydraulic pressure and flow proportionally,
while imported German components provide longer service life.
Equipped with an Inovance servo motor electro-hydraulic power system specially designed for press brakes.
Delivers precision, energy efficiency, and stable performance,
providing reliable support for sheet metal processing.
German EGO linear encoder accurately detects displacement and travel in real time.
Features strong anti-contamination and anti-vibration performance,
stable signal transmission, and no need for return-to-zero operation.
Ensures accurate position feedback and machining precision.
The tooling clamping mechanism adopts a mechanical clamping structure.
The upper die can use segmented short punches according to customer requirements,
featuring high precision, strong interchangeability,
and convenient installation and removal.
The back gauge system adopts a digital AC servo motor with closed-loop
and retreat control functions.
Supports multi-directional movement including front-back beam movement (X-axis)
and beam lifting movement (R-axis).
| Model | Nominal Force (KN) | Worktable Length (mm) | Column Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Open Height (mm) | Main Motor Power (KW) |
|---|---|---|---|---|---|---|---|
| WF67K-40/1500 | 400 | 1500 | 1160 | 320 | 160 | 410 | 5.5 |
| WF67-63/2500 | 630 | 2500 | 2000 | 320 | 160 | 410 | 5.5 |
| WF67K-80/2500 | 800 | 2500 | 2000 | 400 | 200 | 470 | 7.5 |
| WF67K-100/2500 | 1000 | 2500 | 2000 | 400 | 250 | 525 | 7.5 |
| WF67K-100/3200 | 1000 | 3200 | 2700 | 400 | 250 | 525 | 7.5 |
| WF67K-100/4000 | 1000 | 4000 | 3500 | 400 | 250 | 525 | 7.5 |
It eliminates the need for manual material handling, resulting in stable and fast bending with safe and worry-free operation. Widely used in industries such as aircraft, shipbuilding, automotive, switch manufacturing, electronics, and computers, it is an ideal sheet metal processing equipment.
High precision bending with stable hydraulic performance
Servo controlled system for accurate synchronization
Strong and durable machine structure
Flexible configuration with hydraulic or mechanical compensation options
Smooth operation with consistent bending quality
User friendly CNC control system for easy programming
Suitable for continuous industrial production
Bending force available in multiple capacities
Working length customizable based on production needs
High positioning accuracy and repeatability
CNC multi axis control system
Hydraulic drive with servo synchronization
Sheet metal fabrication
Industrial equipment manufacturing
Construction and steel structures
Automotive components
General metal processing
This machine offers a perfect balance between power and precision. It is highly reliable for heavy duty applications while maintaining excellent accuracy. With flexible configuration options and strong performance, it is a preferred choice for manufacturers looking for long term stability and efficiency.
